Stainless steel pipe High frequency welding machine
Stainless steel pipe High frequency welding machine
The kinds of pipe produced by our stainless steel pipe High frequency welding machines are carbon steel pipe, stainless steel pipe SUS304, exhaust pipe SUS409, SUS430. We have developed automation machines, increasing production and declining defect loss. Also, we have devoted to make machines operated more easily while saving labour to reach high quality with low cost.

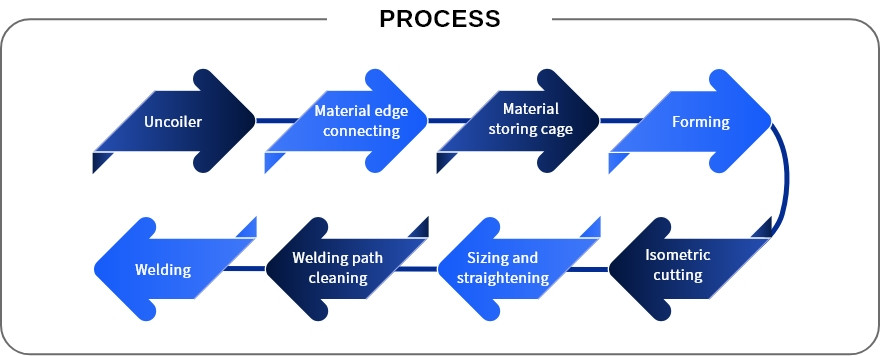

｜Consist of equipment｜

  1. Uncoiler
  2. Material stored cage
  3. Middle set: Forming, Welding, Scratching, Sizing
  4. Automatically reset cutting machine
  5. Run out table

｜Specification table｜

Model Specification Thickness Speed
TKC-40 Ø 9.5~22.2 m/m 0.3t~2.0t m/m 60~100 m/min
TKC-50 Ø 22.2~50.8 m/m 0.5t~2.5t m/m 60~100 m/min
TKB-60 Ø 42.16~76.2 m/m 0.8t~4.0t m/m 35~60 m/min
TKB-80 Ø 88.9~114.3 m/m 1.5t~5.5t m/m 30~60 m/min
