Carbon steel pipe High frequency welding machine

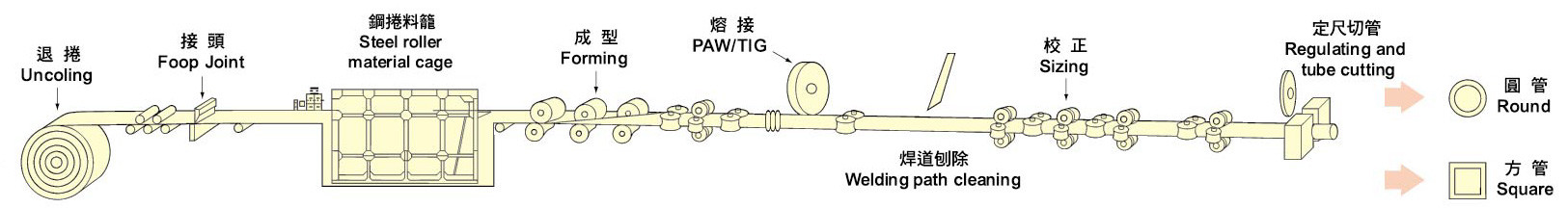

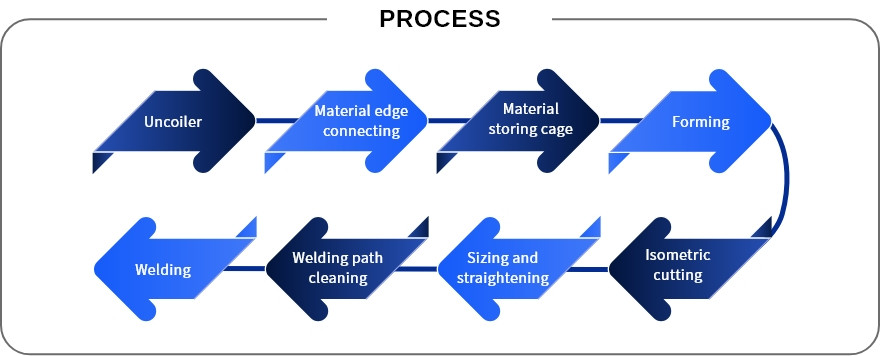

▲Process
▲Uncoiler
Carbon steel pipe High frequency welding machine
Carbon steel pipe High frequency welding machines manufactured by our company have been developed to be automation machines, increasing production and declining defect loss. Also, we have devoted to make machines operated more easily while saving labour to reach high quality with low cost.


｜Consist of equipment｜

  1. Uncoiler
  2. Material stored cage
  3. Middle set: Forming, Welding, Scratching, Sizing
  4. Automatically reset cutting machine
  5. Run out table

｜Specification table｜

Model Specification Thickness Speed
TKB-35 Ø 9.5~22.2m/m 0.3t~2.0tm/m 60~100m/min
TKB-45 Ø 12.7~38.1m/m 0.5t~2.5tm/m 60~100m/min
TKB-70 Ø 25.4~76.2m/m 0.8t~4.0tm/m 35~100m/min
TKB-90 Ø 60.5~114.3m/m 2.0t~8.0tm/m 30~60m/min
TKB-110 Ø 88.9~219.1m/m 3.0t~10.0tm/m 15~50m/min
